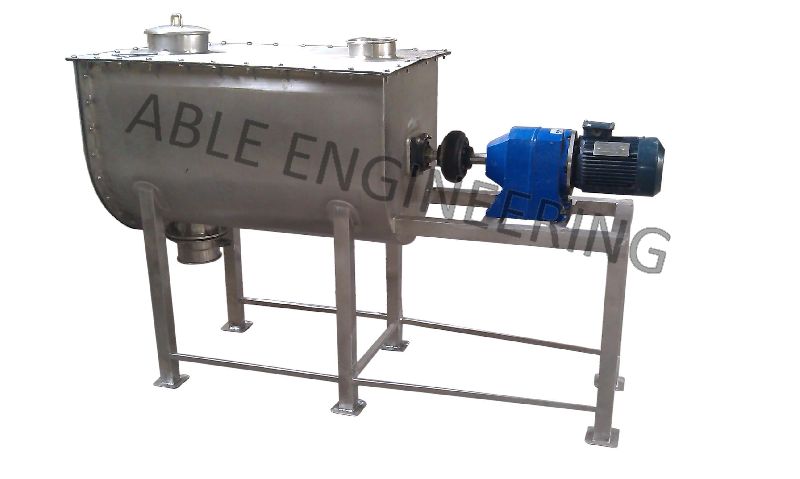

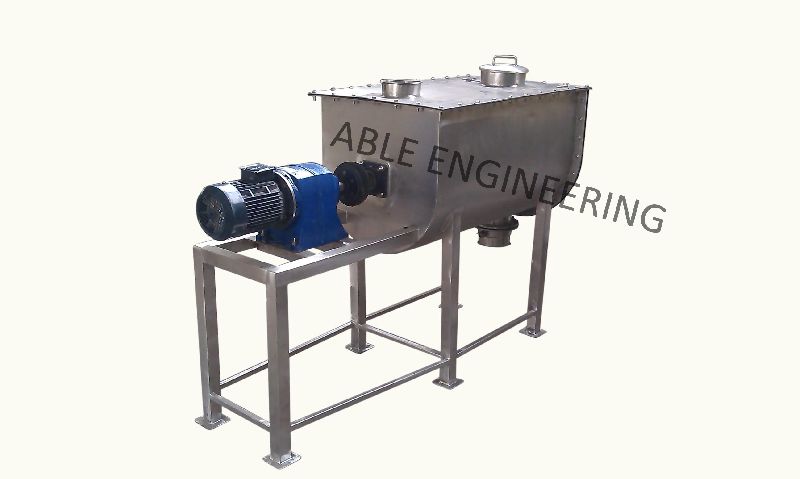

Ribbon Blender

Ribbon Blender comprises of a U-shaped horizontal trough and a specially designed Double Helical Ribbon Agitator rotating within. Ribbon Blenders are based on a proven agitator construction that provides a triple mixing action ensuring fast, efficient blending. A ribbon agitator consists of inner and outer helical agitators. The outer helical agitator moves materials in one direction and the inner helical agitator moves the materials in the opposite direction. The dimensions and configuration of the ribbons are carefully balanced to provide a movement of material within the container that avoids dead spots and gives rapid product discharge. It operates two principles of mixing that is convection and diffusion. Convective mixing: – the macro movement of large portions of the solids. It occurs when along the horizontal axis of the agitator assembly the solid turns over. Able Engineering manufactures the best quality Ribbon Blender for Chemical Plants.

These ribbon blenders have rugged construction fabricated with heavy gauge MS or SS304, SS 316 depending on the application. Its design is for maximum efficiency in leak proof construction and built for long trouble-free service.

Features:-

• Best Suitable for mixing both solids with solids and solids with liquids.
• Achieves triple mixing action.
• The operating process is clean and hygienic.
• Long durable life.
• Large volume capacity.
• Its design allows shorter batch cycle times due to its increased mixing efficiency.
