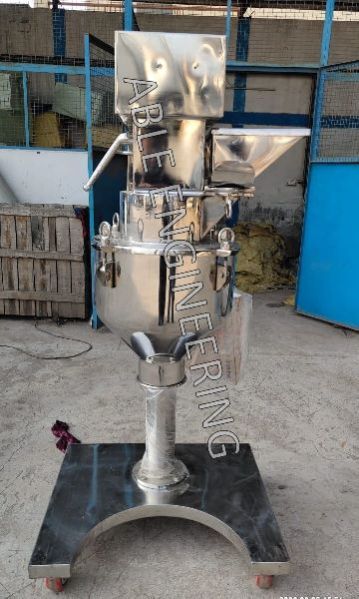

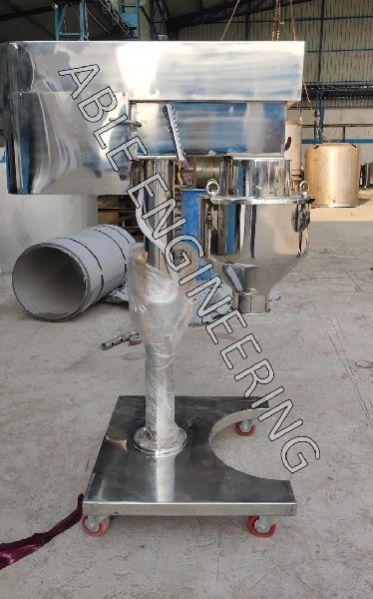

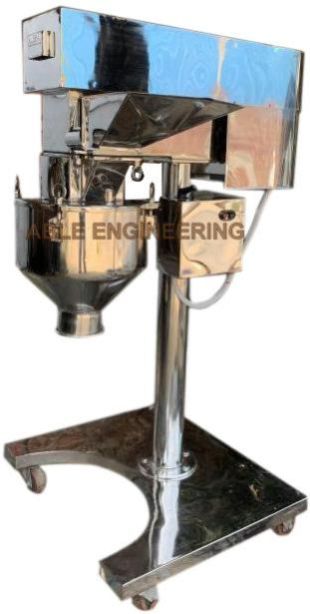

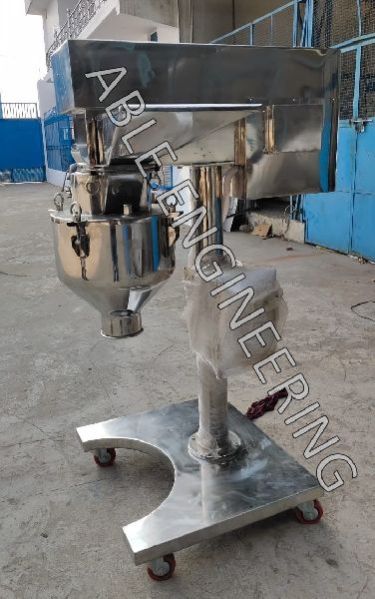

Multi Mill

We are manufacturer of Multi Mill, which is widely used for grinding wet and dry material. It operates on the principle of variable force swing beaters having both knife and impact edges, rotating within a selected screen to get the required size reduction. The material fed into the hopper goes down to the processing chamber where it moves to the periphery and passes through the screen radially and tangentially. Industrial Multi Mill can be used as a high-speed granulating mill, pulverizing, shredder, chopper, etc. A wide range of wet and dry drug materials can be added to this industrial machine without any special attachments. Multi mill tablet machine works on the principle of size reduction with variable force swing hammer blades and with a selected screen to control reduction.

Application
Multi Mill widely used for wet and dry granulation pulverization etc. in Herbal Extraction Plant, Phyto Extraction Plant, Pharmaceuticals, Chemicals, Cosmetics, Ceramics, Colors, Dyestuff, Food products, etc. it also finds application in Pesticides, Fertilizers, Spices, Detergents, Insecticides, Plastics, and Resins Industries.

Salient Features

• cGMP point of view machine is provided with SS cladding on base, pillar, machine chamber, SS cover on motor. No exposed painted surface on top of the machine.
• Beaters and shaft are made of stainless steel 316 quality and beaters are further hardened & Beaters are fitted on a shaft.
• The direction of beaters can be changed by a reversible switch.
• Beaters assembly is swing type, dynamically balanced, which reduces vibration and noise level and increases bearing life.
• 12 nos. Beaters are of knife and impact edges & 2 nos. beaters are of scrapper blade types.
• All contact parts are made of SS 316 quality and can be easily & quickly dismantled and cleaned.
• Cylindrical screen for higher output.
• Flameproof electrical components can be provided at extra cost.
